Fast Breaking, Safe and Reliable

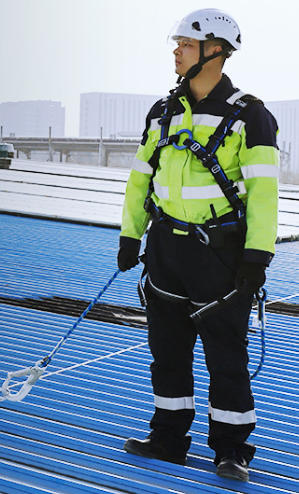

The horizontal fall protection system, also known as the lifeline, is an anchorage device designed to ensure that the operator can work safely at height where there is a risk of falling, and to allow the operators to work flexibly. It can be mounted in a straight line or with corners, and used for safety protection of different types
Key Features
- The system is arranged along the movement of personnel and can be designed straightly or with corners. When the person moves along the lifeline, the movable anchor does not need to be moved away and it can slide along the wire rope supports.
- The horizontal fall protection system can be used by several people to work together.
- When a fall occurs, the horizontal fall protection system can weaken the impact force generated during the fall by buffering and protect the personnel from injury.
- The horizontal fall protection system adopts high-quality stainless steel which can be widely acceptable in various environments and is easy for maintenance.
Specifications
| Model | SH80 |
| Material | Stainless steel 304 / 316 |
| Wire rope diameter | 8.0 mm |
| Rated load | 12 kN |
| Intermediate support spacing | ≤ 12 m |
| Applicable fall arrester | TF-H10 |
| Standard | EN795: 2012 |
| Certification body | CE |
| Customization | Customized design and manufacturing |
