Star Rope Hoist – the versatile rope hoists impress with high load capacities and very easy material transport
Construction projects from all sectors have known and appreciated the benefits of the winches for decades.

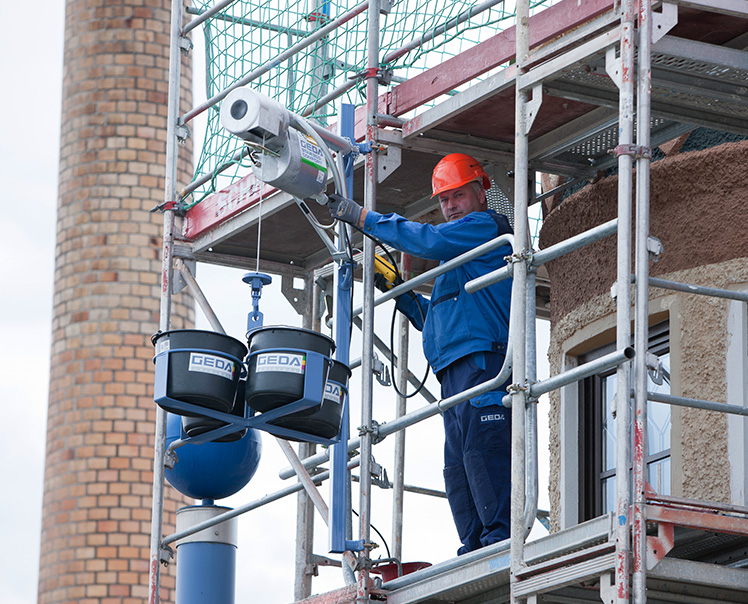

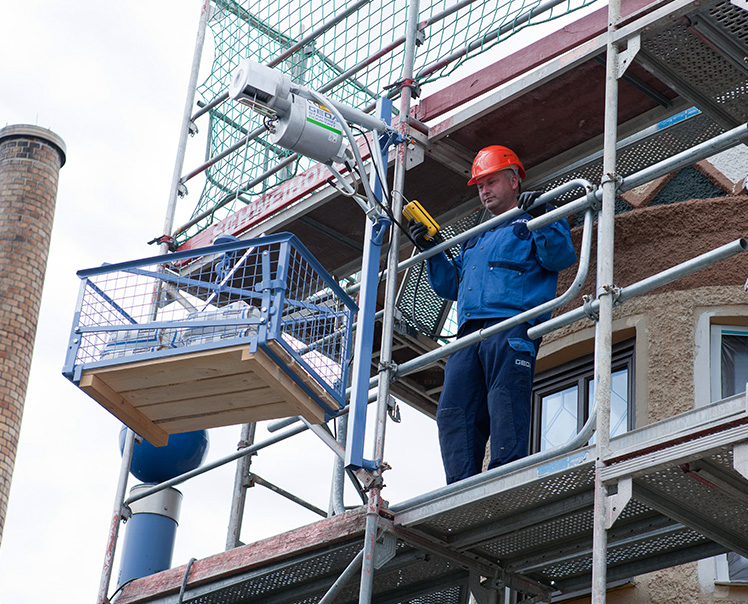

Whether new build projects or renovation work: the versatile rope hoists impress with high load capacities and very easy material transport, even under difficult conditions. The extensive range of different load handling devices such as bucket holders, plate grabbers or rock baskets allow the rope hoists of the Star series to be ideally adapted to the requirements on site.

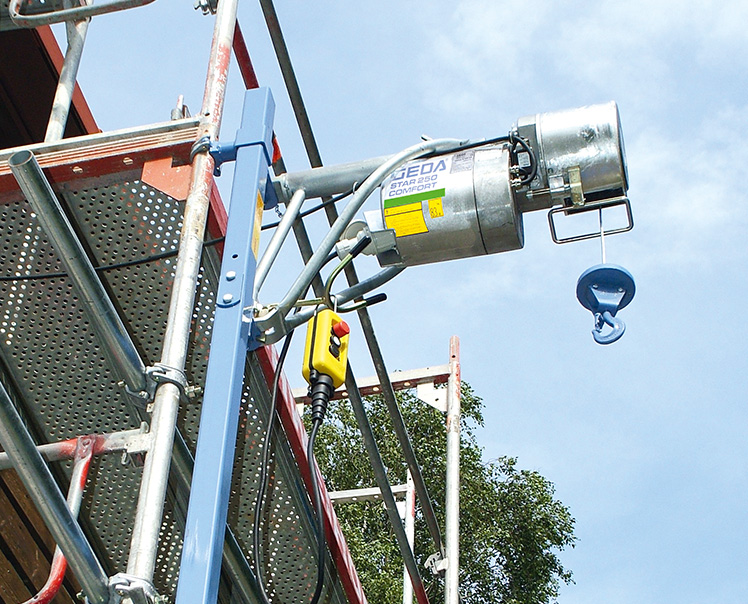

One particularly convenient feature is that the compact devices can be installed in any location at the scaffolding, in a window, between stories or on the roof. The electric winch can be separated from the swivel arm, allowing installation by one person.
Product Highlights
Easy installation
As it is possible to separate the electrical winch from the swivel arm, the hoist can be assembled by one person.
Versatile fixing devices

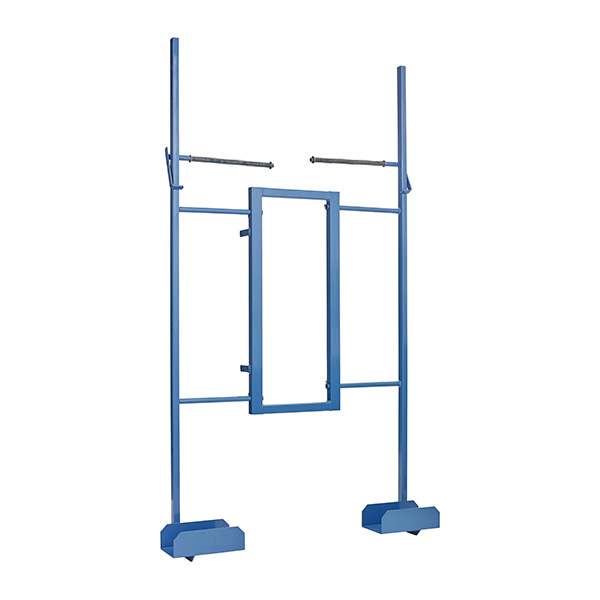

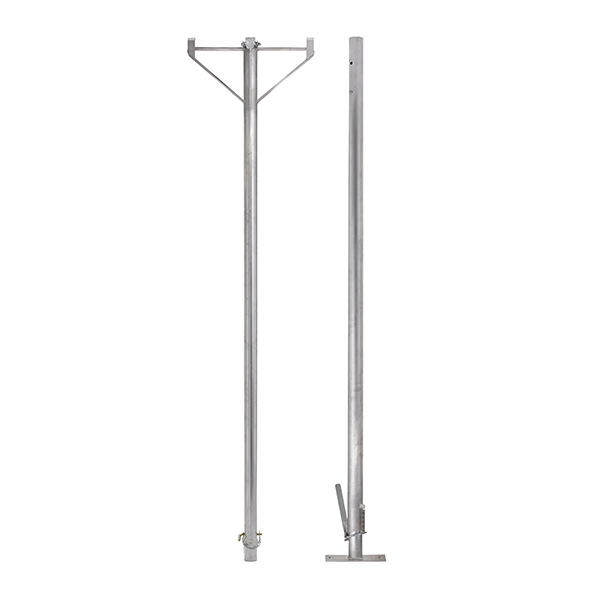

Whether the scaffold clamp, the free-standing tripod or the floor to ceiling tie – these hoists are quick and easy to use even under tough conditions.
Numerous load carrying devices
Make it easy to transport construction materials, scaffold components and construction tools of all types.
Technical Data
| Model | GEDA STAR 200 STANDARD | GEDA STAR 250 COMFORT |
| Cargo | Material | Material |
| Load capacity (material) | 200 kg | 250 kg |
| Lifting height | 50 m | 50 m |
| Rope length | 51 m | 51 m |
| Lifting speed | 22 m/min | 28 m/min |
| Power supply | 1 kW / 230 V / 50 Hz / 16 A | 1 kW / 230 V / 50 Hz / 16 A |
