Tower Lifting Equipment That Can Ride Multiple People at The Same Time

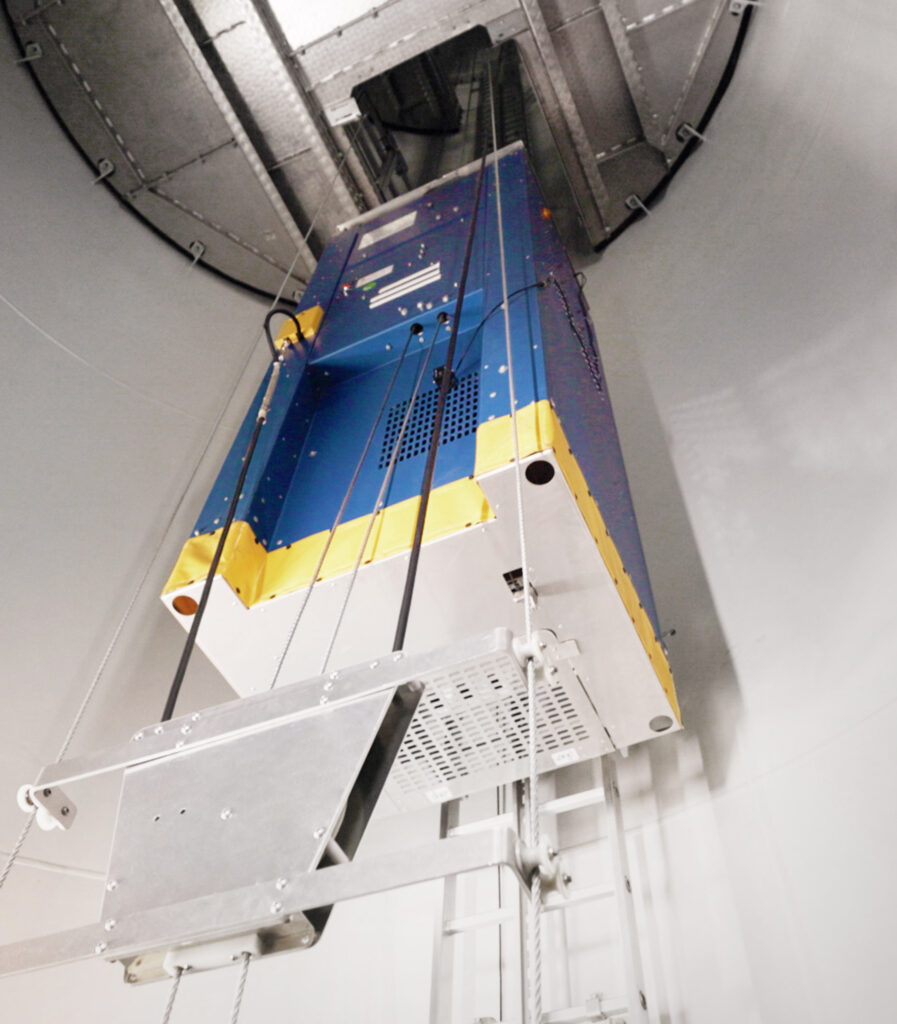

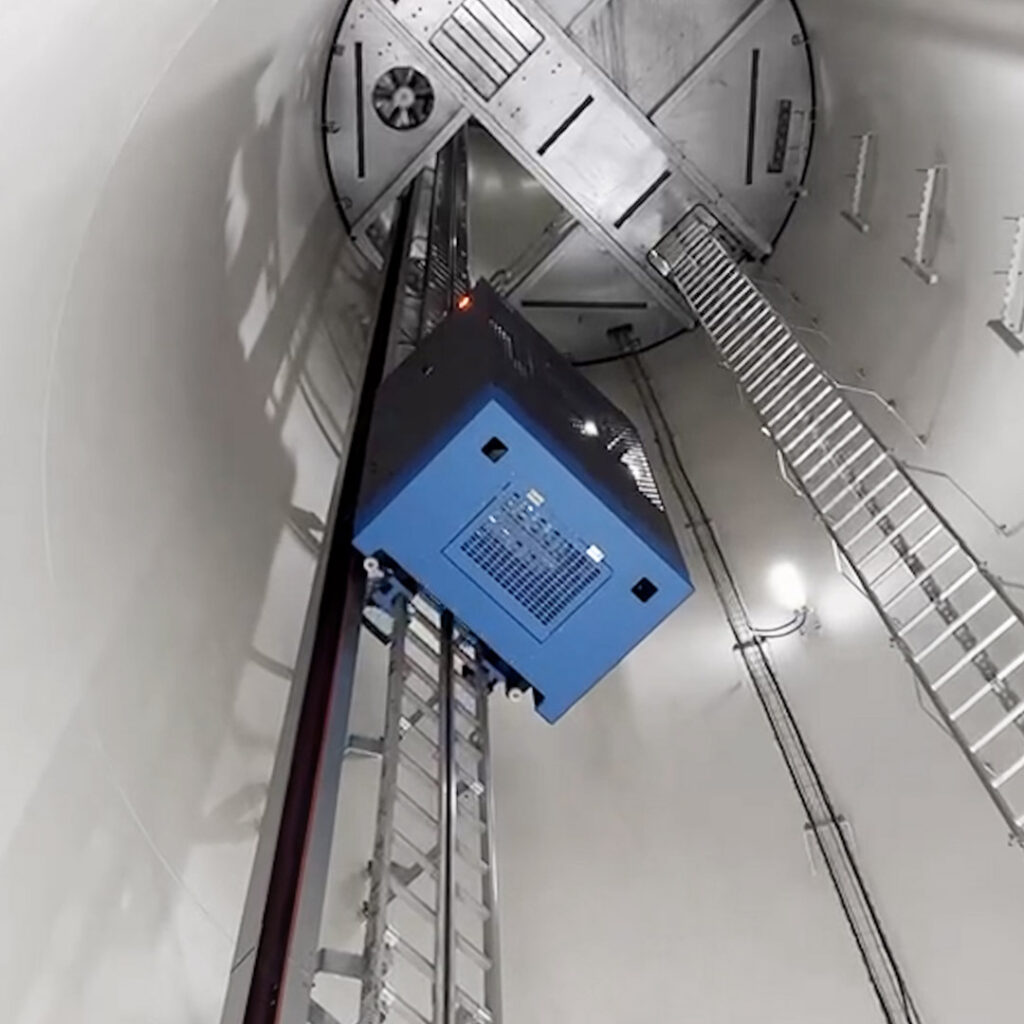

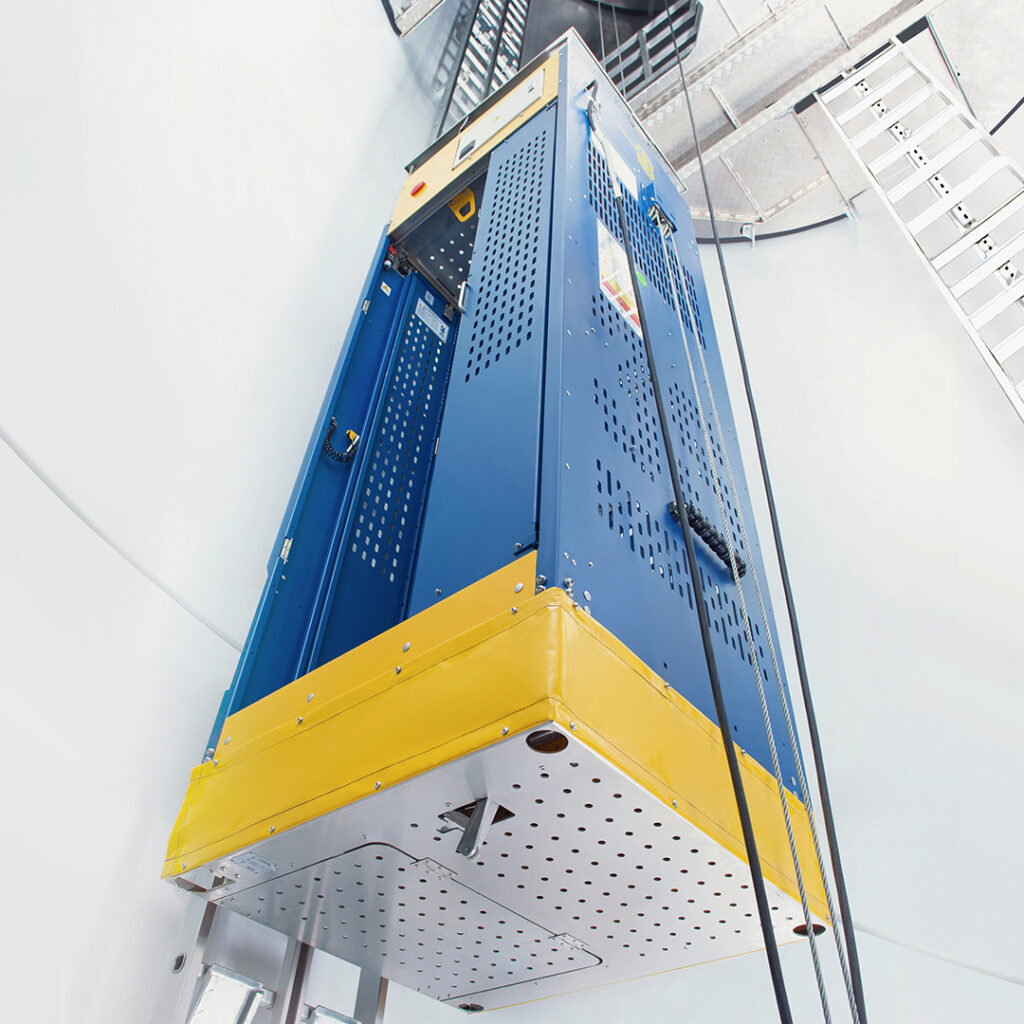

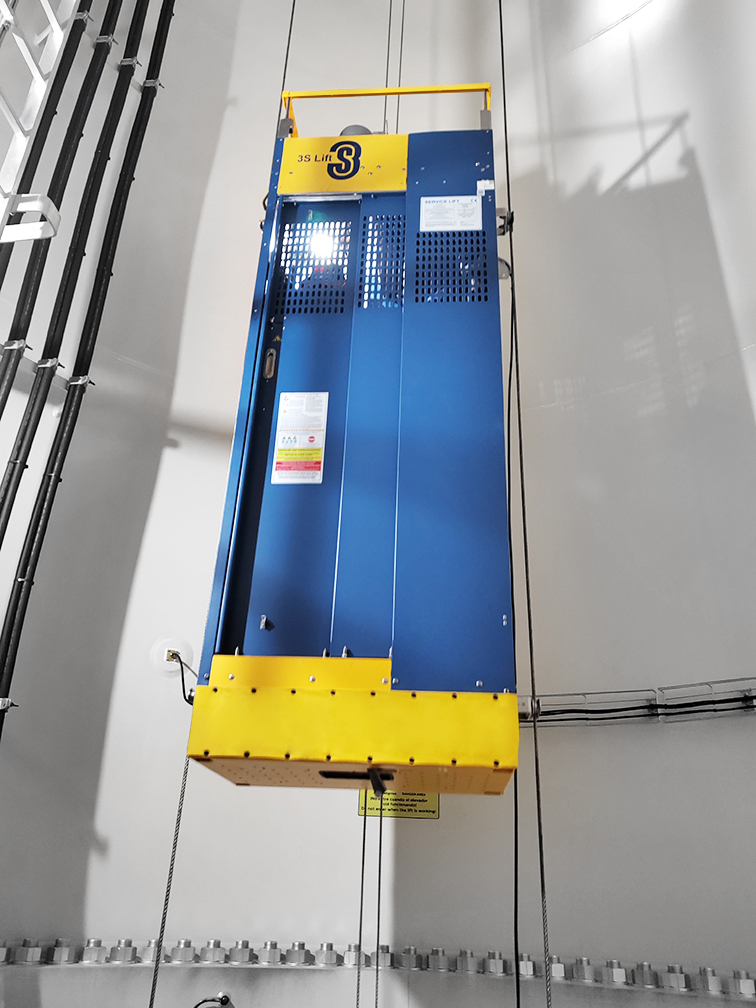

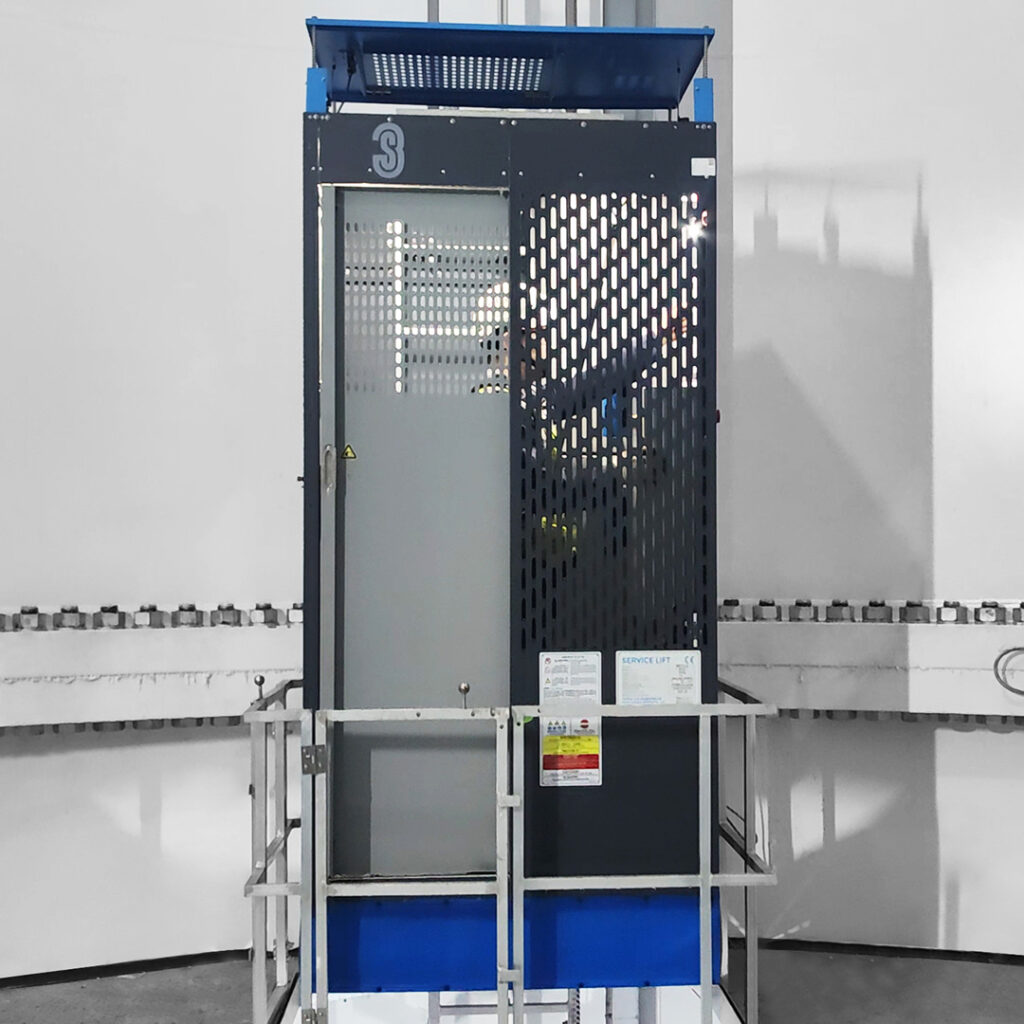

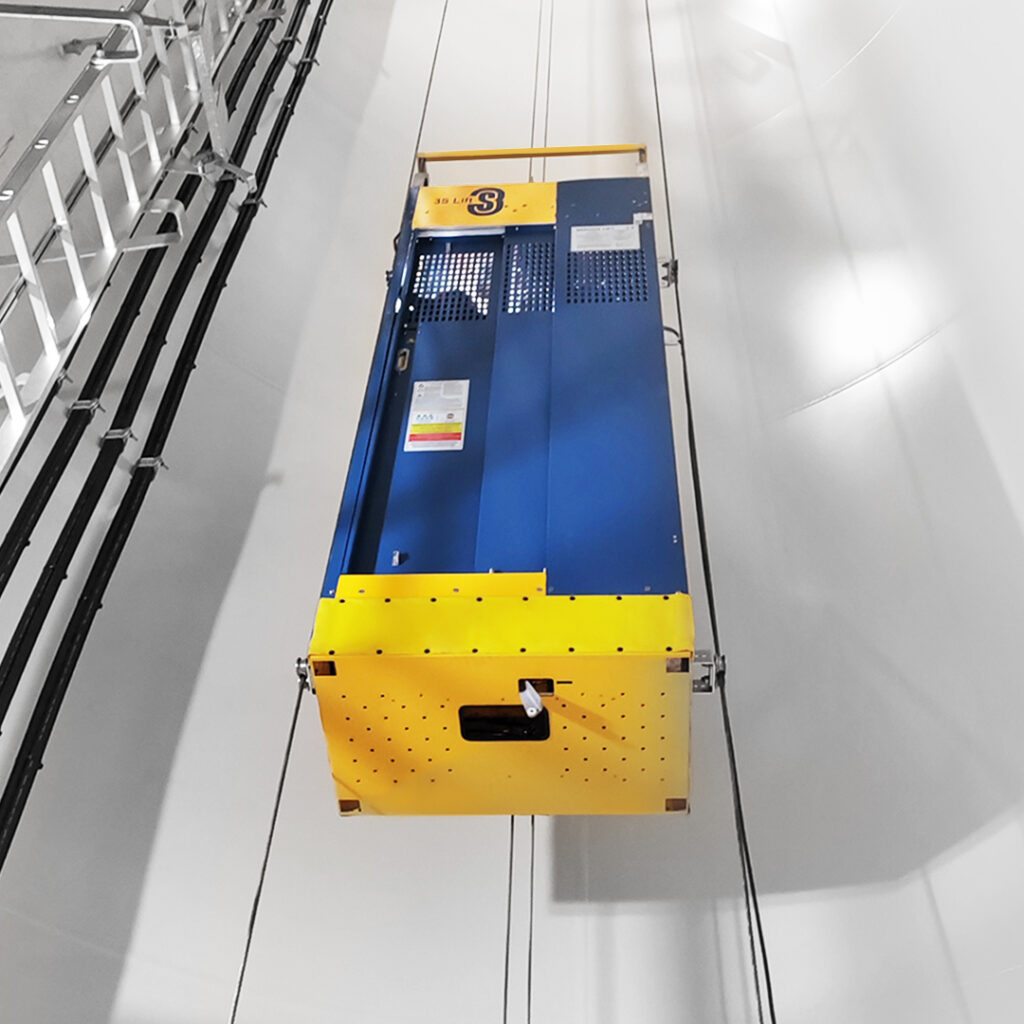

The Service Lift is a lifting equipment installed inside the
tower, powered by a motor or elevator, and drawn
by a pinion and rack engaging or steel wire rope,
moving up and down along the guide ladder or steel wire rope
on the inner wall of the tower to transport workers and tools
from the starting platform to the working platform.
Key Features
- Fully independent lifting and safety systems
- Omni-directonal sensing limit device and safety limit switches: Make a full range limit protection.
- Fall protection system: Guarantees the safety of personnel and equipment.
- Smart information control system (optional)
- Mechanical overload protection
- Advanced lift driving technology: Ensures safety and liability.
- High-strength load bearing structure
- Manual descent
- Emergency back-up safety doors: Installed at the top and bottom of the car.
- Mechanical interlock
- Mechanical interlock (optional)
- Electromagnetic door lock (optional)
Specifications
| Model | WM240A-LL |
| Rated load | 240 kg |
| Capacity | 2 people |
| Speed | 18 m/min、21 m/min |
| Model | WM350E1-LL |
| Rated load | 350 kg |
| Capacity | 3 people |
| Speed | 18 m/min、21 m/min |
| Power supply | 2.7 kW |
| Dimensions | 960 mm x 600 mm x 2980 mm |
| Rated voltage | 400/690 V, 50/60 Hz, 3P+PE |
| Operating temperature | -30 ℃ – +60 ℃ (Low temperature type can be customized) |
| Power supply | 4 kW |
| Dimensions | 950 mm x 860 mm x 2750 mm |
| Rated voltage | 400/690 V, 50/60 Hz, 3P+PE |
| Operating temperature | -30 ℃ – +60 ℃ (Low temperature type can be customized) |
