Solarlift – a Professional Mounting for Photovoltaic Systems
After the decision of placing a photovoltaic system on the roof has been made, the solar panels need to be mounted. It might sound like a lot of work at first, but Solarlift is your choice for assembling large and unhandy solar panels and photovoltaic modules. The Solarlift is very space-saving. Therefore, it can be installed at places that are not easily accessible. This feature as well as the quick and easy assembly, the space-saving storage and the easy transport are the main advantages of the Solarlift, and the reason for our customers to trust in our German engineered expertise.
SOLARLIFT ENQUIRY
GEDA Solarlifts – Different Modalities for Your Application Area
The individual elements of the GEDA Solarlift, made of light aluminum, can be dismantled quickly and transported with the help of a chassis in a space-saving and effortless manner. The basic unit of a GEDA solar lift consists of a standard carriage with cable breakage protection, a head section with quick-locking pulley and a 2 m wide foot section. With this equipment three different variants are offered: the single-stage GEDA Lift 200 Standard and GEDA Lift 250 Comfort as well as the two-stage Fixlift 250. The GEDA Lift 250 Comfort and Fixlift 250 models are equipped with a pluggable electric winch, while the GEDA LIFT 200 Standard has a fixed control unit and limit switch. In addition, the models differ in their load-bearing capacity, which depends on the design of the ladder profiles as well as the inclination and rail length. Simple ladder sections with a load of 150 kg / 200 kg and reinforced elements with a load capacity of 200 kg / 250 kg are offered. The lifting speed also varies from model to model. While the one-stage standard model GEDA Lift 200 transports the material at up to 25 m/min, the comfort version GEDA Lift 250 achieves a speed of around 30 m/min and the GEDA Fixlift is equipped with a two-stage so-called soft start. It can move the elements at a speed of 19 m/min or 38 m/min.
All models reach a head of up to 19 m, require little space as well as a power connection.
Unique Concept: the Solar Platform

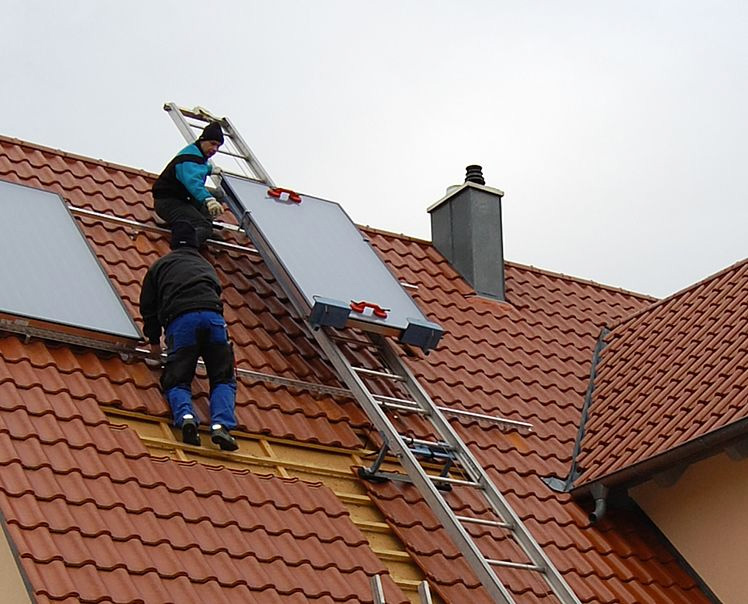

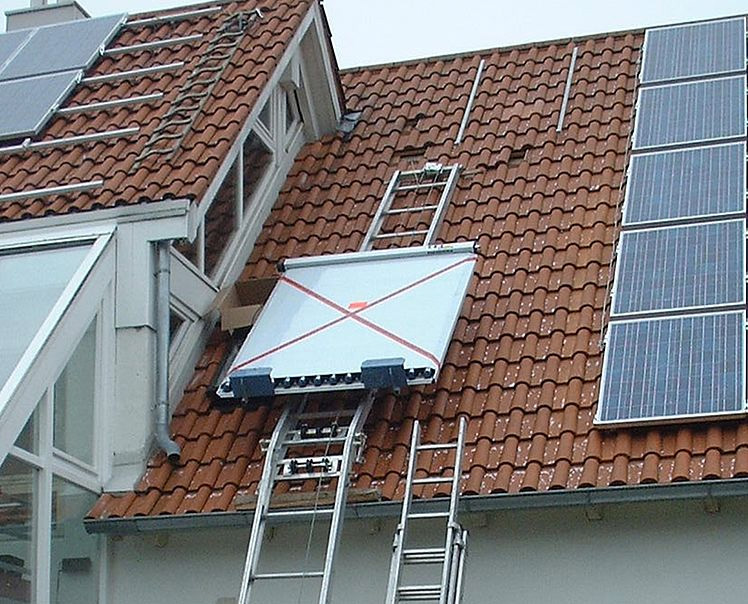

The Solarlift has particularly been designed for working with sensitive materials and offers a specific solar platform for a safe transport of expensive solar panels. The platform provides a specially developed plastic surface and an extra fixation possibility which can be adjusted as desired. The second transport variation is the collector platform, which is adjustable for 0,5 to 1,6 m panel width. Also, DESTRA provides you with complementary accessories such as a roof trestle for working underneath the ladder.
GEDA Solarlifts – Different Modalities for Your Application Area
The individual elements of the GEDA Solarlift, made of light aluminum, can be dismantled quickly and transported with the help of a chassis in a space-saving and effortless manner. The basic unit of a GEDA solar lift consists of a standard carriage with cable breakage protection, a head section with quick-locking pulley and a 2 m wide foot section. With this equipment three different variants are offered: the single-stage GEDA Lift 200 Standard and GEDA Lift 250 Comfort as well as the two-stage Fixlift 250. The GEDA Lift 250 Comfort and Fixlift 250 models are equipped with a pluggable electric winch, while the GEDA LIFT 200 Standard has a fixed control unit and limit switch. In addition, the models differ in their load-bearing capacity, which depends on the design of the ladder profiles as well as the inclination and rail length. Simple ladder sections with a load of 150 kg / 200 kg and reinforced elements with a load capacity of 200 kg / 250 kg are offered. The lifting speed also varies from model to model. While the one-stage standard model GEDA Lift 200 transports the material at up to 25 m/min, the comfort version GEDA Lift 250 achieves a speed of around 30 m/min and the GEDA Fixlift is equipped with a two-stage so-called soft start. It can move the elements at a speed of 19 m/min or 38 m/min.
All models reach a head of up to 19 m, require little space as well as a power connection.
Unique Concept: the Solar Platform
The Solarlift has particularly been designed for working with sensitive materials and offers a specific solar platform for a safe transport of expensive solar panels. The platform provides a specially developed plastic surface and an extra fixation possibility which can be adjusted as desired. The second transport variation is the collector platform, which is adjustable for 0,5 to 1,6 m panel width. Also, DESTRA provides you with complementary accessories such as a roof trestle for working underneath the ladder.
Plug-in Ladder Hoist
Features
- Tool-free Assembly
- Small-sized & Lightweight Design
- Safety Specialized Catch
- Multiple Transport Platforms
Advantages
- Modular components connect via quick-release mechanisms without wrenches
- Drive unit weighs only 65kg; system fits in a standard minivan
- Mechanical redundancy engages instantly in the event of rope failure
- Interchangeable carriers for different materials (panels, tiles, buckets)
Benefits
- Rapid Deployment: Reduces site setup time by up to 60%
- Logistical Efficiency: Eliminates the requirement for heavy haulage
- Risk Mitigation: Ensures compliance with strict safety regulations (CE/UL)
- Operational Versatility: One unit serves multiple trades
Technical Data
Battery Ladder Hoist
Features
- Dual-Battery Compatibility
- Wireless Operation
- Wire Rope Drive
- Automatic Tilting Function
Advantages
- Works with existing Dewalt/Milwaukee ecosystems
- Eliminates trailing cables and power supply dependencies
- Superior durability compared to nylon strap alternatives
- Mechanically tips load at the apex for retrieval
Benefits
- Capital Efficiency: utilizing batteries already owned by the contractor
- Enhanced Safety: Removes primary trip hazards and electrical risks
- Longevity: 50% longer service life and resistance to abrasion
- Ergonomics: Reduces physical strain on operators receiving materials
