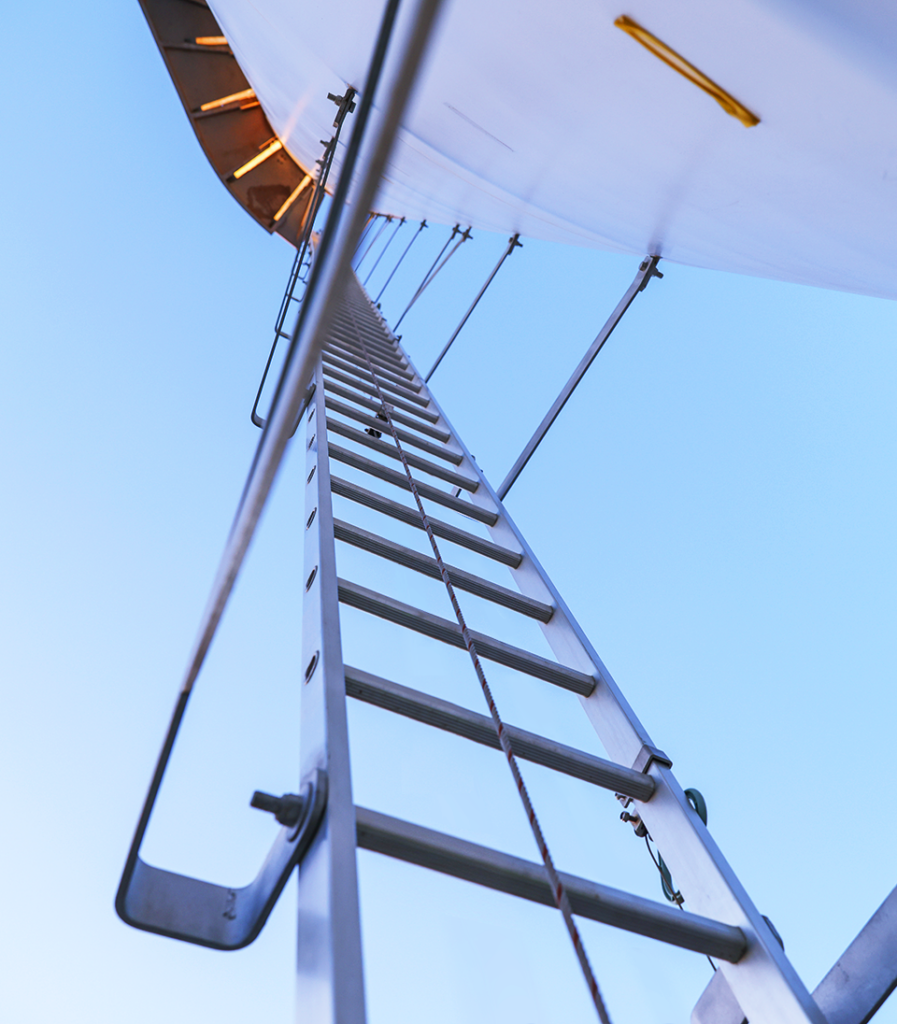

ALUMINIUM LADDER

Simple operation and easy installation

The Suspended Platform is widely used in wind power tower
cylinder cleaning and maintenance, blade maintenance and
maintenance in construction, hydropower, thermal power,
petrochemical and other fields.

Key Features

  • This device has an exclusive domestic automatic leveling system with unique anti-tilt function to maintain stable.
  • The horizontal expansion range can reach 1-18 meters, and the horizontal swing maintenance range is ± 15 °.
  • A flexible work platform that can achieve 360 ° omnidirectional displacement maintenance.
  • The entire machine supports overall transportation without disassembly, making it convenient and reliable.

Specifications

Rated weight 350 Kg Speed 9 m/min
Dimensions 5.8 m ×2 m × 2.7 m Length 1-18 m (customizable)
SafeLock Model SL3 Wire rope Diameter: 9.1 mm
(Minimum breaking tension: 62 KN)
  Quantity 3 sets Lifting point load > 17500 N
Lifting
Hoist
Model C700 Quantity 3
  Rated lifting force 700 Kg Rated voltage 1.8 KW
  Rated voltage 7 KW/400 V Self-weight 1300 Kg
  Capacity 3 people Compliant with standard: CE
Accessories / Load Carrying Devices
