Built tough for easy lifting

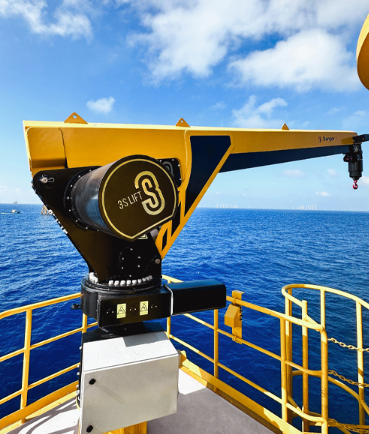

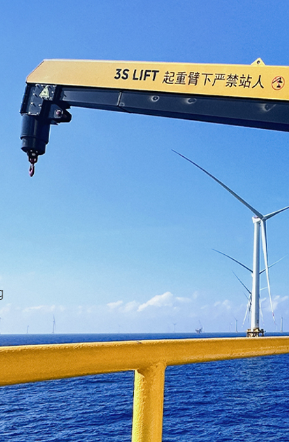

The Offshore Davit Crane, specially designed for offshore wind turbine platforms, is your reliable solution for safe and efficient spare parts loading and unloading from supply ships at sea.
Key Features
- Anti-corrosion level CX: For harsh offshore environment
- Customizable safe working load
- Self-locking protection function
- Anti-twisting wire rope
- Overload protection function
- Unique wire rope pressure mechanism and slack rope limiter mechanism
- Automatic Overload Protection System (AOPS)
- Emergency Load Lowering Function (ELL)
- Distributed sealing protection design
Specifications
| Model | OC-5010 |
| Safe working load | 500 kg/1,000 kg |
| Lifting speed | 20 m/min or 36 m/min |
| Slewing radius | 5 m |
| Max. slewing angle | 350° |
| Max. lifting height | 30 m |
| Wire rope diameter | 11 mm |
| Power supply | 400 V/690V |
| Rated power | 8 kW |
| Service life | 35 years |
| Operating temperature | -20℃ to 45℃ |
| Max. wind speed | 18 m/s |
| Max. significant wave height | 2 m |
