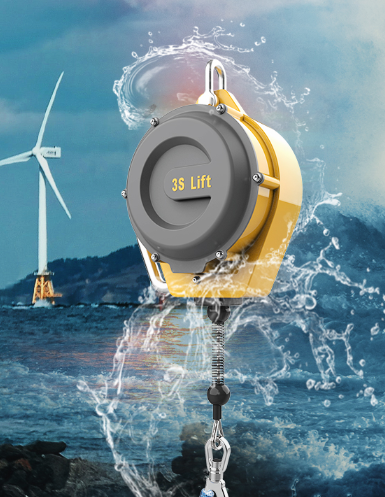

SELF-RETRACTING LIFELINE

Easy to Climb – Full Protection

The Self-Retracting Lifeline allows technicians
to perform repairs and installations at height
with complete peace of mind. Should a fall occur,
the brake will self-engage to arrest the fall.

Key Features

  • High standard material selection for internal and external parts
  • Small in size, lightweight, and easy to use
  • Higher safety level, surpassing standard requirements in all aspects
  • Modular design for easy inspection and maintenance
  • Strong corrosion resistance
  • Clear and easy-to-understand labeling to avoid mistakes
  • Comprehensive after-sales network for worry-free usage

Specifications

  06SA 08SA
Maximum load 140kg(310 lbs) 140kg(310 lbs)
Working length 6.2m 6.2m
Weight 4.9kg 4.9kg
Corrosivity resistance C4-H C4-H
Locking distance ≤1m ≤1m
Max. dynamic force <4.4kN(ANSI Z359 B 8kN)
<4.4kN(CSA Z259 8kN)
<3.4kN(EN 360 6kN)
6kN(ANSI Z359 B 8kN)
6kN(CSA Z259 8kN)
6kN(EN 360 6kN)
Average dynamic force <2.6kN(ANSI Z359 B 4kN) 4kN(ANSI Z359 B 4kN)
Breaking force >16kN >16kN
Standards ANSI Z359.14 B 、CSA Z259.2.2 、EN 360:2002、
GB24544-2009、 OSHA 1926.502
ANSI Z359.14 B 、CSA Z259.2.2 、EN 360:2002、
GB24544-2009、OSHA 1926.502

Accessories / Load Carrying Devices
