Multiple Protection Makes Working at Height Safer

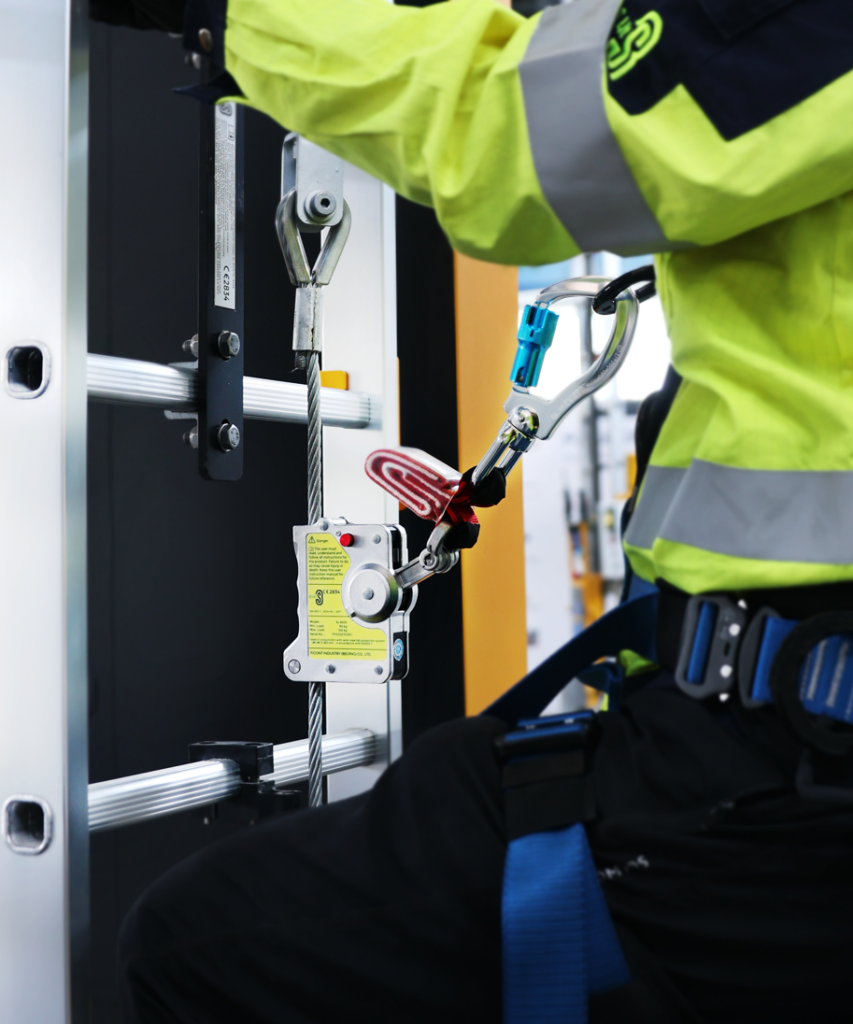

Fall protection is paramount for safety when working at height. Should a technician slip or miss a rung on the ladder, the Fall Arrester will lock immediately, preventing a fall.

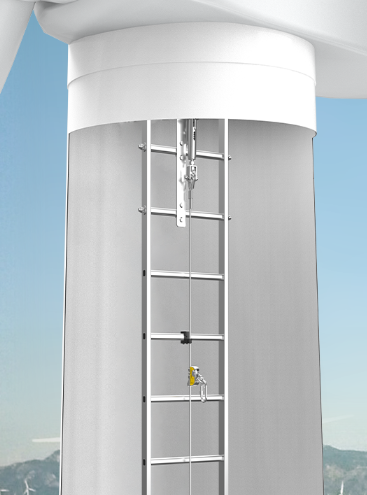

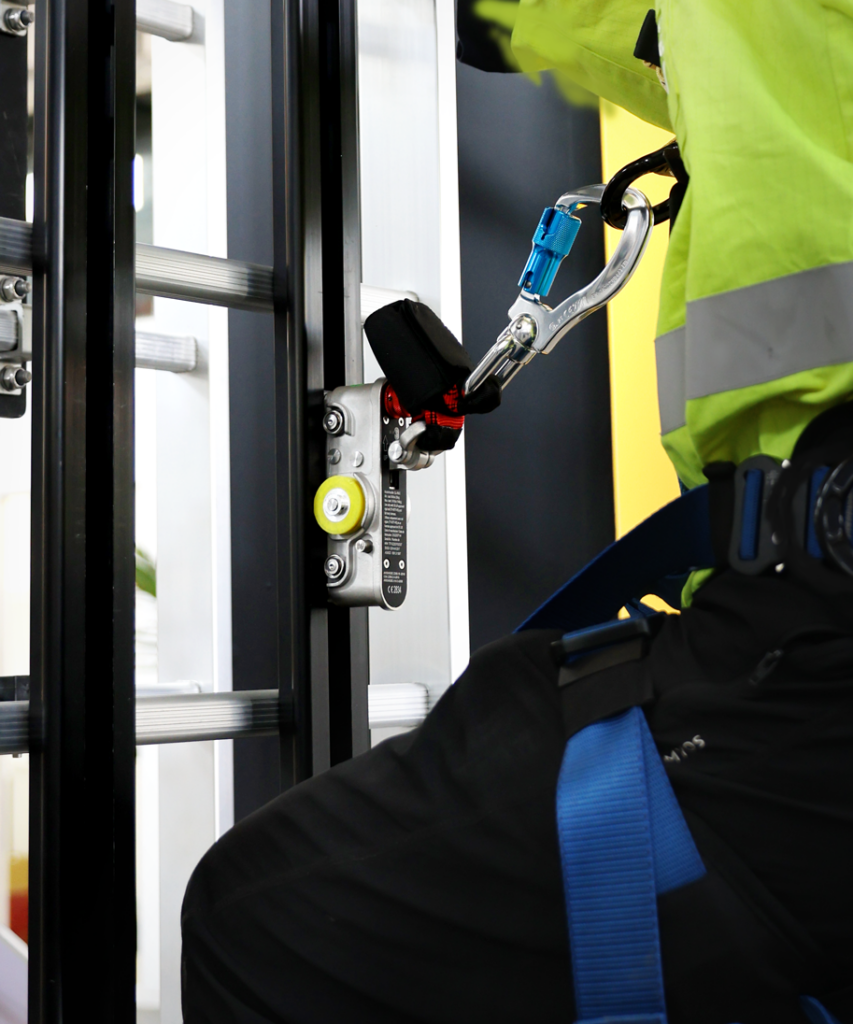

The 3S Protection Guide Rail Fall Protection System consists of two components: a guide rail and a Fall Arrester.
Key Features
- Mounted to Safety Guide Rail
- Energy Absorber
- Anti-Inversion Design
- Attachment at Any Position
- Comfortable and Convenient Use
- Secondary Locking Mechanism
- Certifications
Specifications – TF-R Guide Rail Fall Protection System
| Guide rail type | Inner rail type |
| Corresponding Fall Arrester | SL-R60S, SL-R50E, SL-R50 |
| Ladder | Aluminum ladders and steel ladders |
| Max. static load | 16 kN |
| Compliant with standard | EN 353-1, CAN/CSA Z259.2.1, ANSI Z359.16, ANSI A14.3, CAN/CSA Z259.2.4, AS/NZS 1891.3 |
| Certification | CE |
Specifications – Fall Arrester
| Model | SL-R60S | SL-R50E | SL-R50 |
| Corresponding Fall Protection System |
TF-R | TF-R | TF-R |
| Rated load | 140 kg | 140 kg | 140 kg |
| Max. static load | 16 kN | 16 kN | 16 kN |
| Compliant with standard | ANSI Z359.16 ANSI A14.3 CAN/CSA Z259.2.4 AS/NZS 1891.3 |
EN 353-1 ANSI Z359.16 CSA Z259.2.4 |
EN 353-1 |
| Certification | CE, ETL | CE, UL | CE |
